Light the sanctuary
Six BeamZ LCB300 RGBW LED linear wash bars provide the sanctuary arch lighting. DMX control allows the colour and effect settings to be adjusted for different services.
Project case study · Taree, Mid North Coast · Houses of worship
A new light on worship. Sanctuary lighting, an illuminated cross and practical AV upgrades bring colour, flexibility and more convenient control to St John’s Anglican Church.
Delivered by ACCAV, part of Masters Voice Technology.
Discuss your church upgrade →The brief
At St John’s Anglican Church in Taree, the sanctuary arch, stained glass and holy cross form the visual focus of worship. The parish wanted brighter, more adaptable lighting and the ability to change colour for services at different times of the church year.
The brief also brought together everyday AV needs: convenient laptop connectivity, presentation on the two nave monitors and a modern sound mixer integrated with the existing audio system.
ACCAV developed a coordinated lighting and AV upgrade around those requirements, combining dedicated LED fixtures, DMX control, digital audio mixing and a hardwired HDMI signal path.
The project is part of our Mid North Coast AV work and our wider church audio visual capability.
The approach
Six BeamZ LCB300 RGBW LED linear wash bars provide the sanctuary arch lighting. DMX control allows the colour and effect settings to be adjusted for different services.
Dedicated RGBW LED strip lighting, with its driver and power supply, gives the holy cross a distinct illuminated outline within the sanctuary.
A Soundcraft Ui24R digital mixer updates the sound-control platform. The AV scope includes a hardwired HDMI connection from a laptop input to the two nave monitors, with audio fed into the existing sound system.
Project gallery

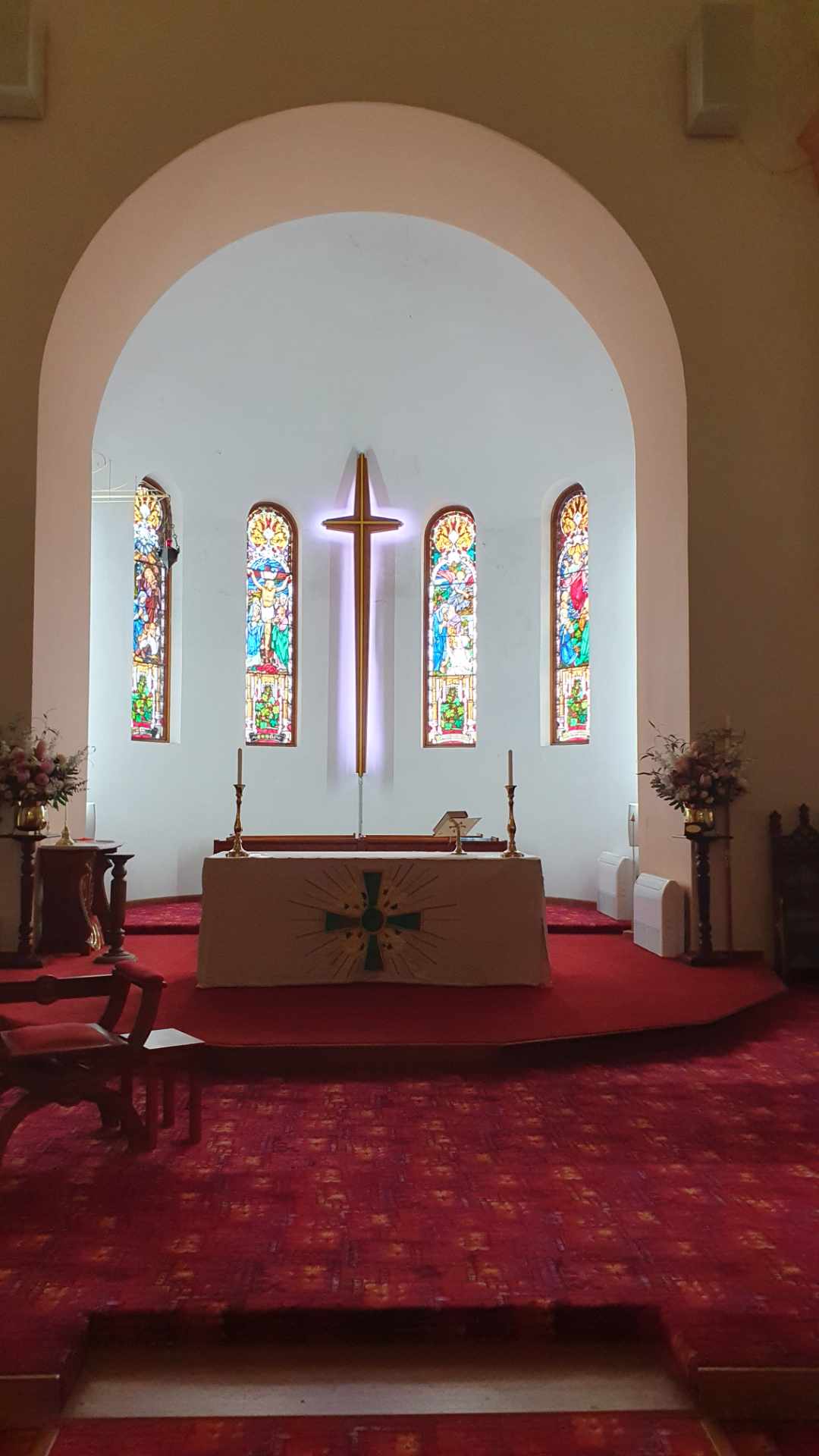

The project photographs show white, red and green settings in the same worship space. The coloured wash highlights the sanctuary’s curved architecture, while the illuminated cross remains a clear focal point.
Lighting design
The sanctuary lighting uses six BeamZ LCB300 fixtures. Each bar combines 36 × 3 W RGBW LEDs in 12 controllable sections. The white channel supports neutral illumination alongside the red, green and blue colour mix.
A DMX192S controller provides the lighting-control interface. Dedicated RGBW strip lighting and a suitable driver illuminate the cross, complementing the broader wash across the sanctuary.
The installation scope includes fixture positioning, DMX and power interconnections, connectors and the leads needed to bring the lighting system together. This coordinated approach keeps the fixtures, control and cabling within one defined project scope.

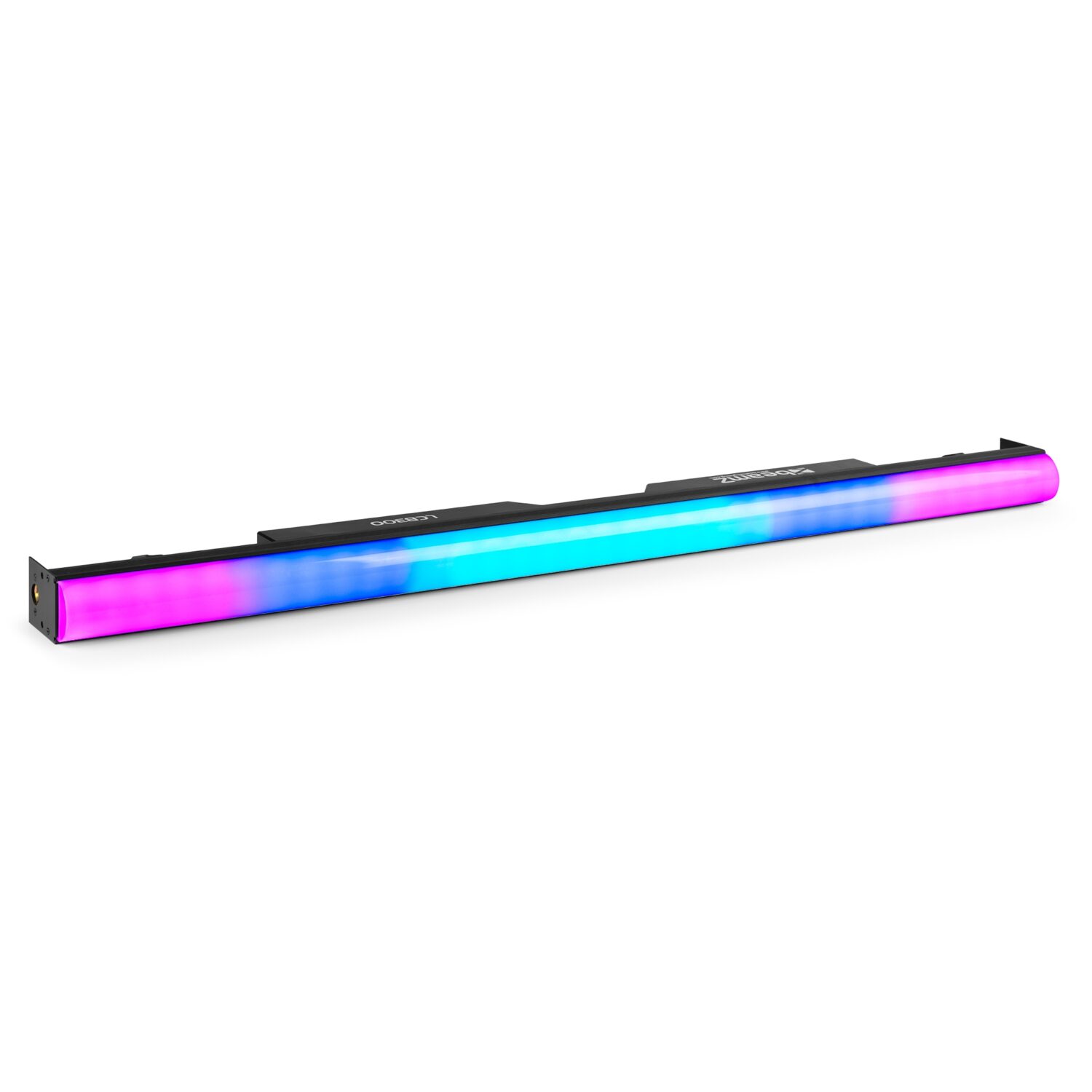

Six fixtures provide adjustable colour across the sanctuary arch.
Manufacturer product details ↗

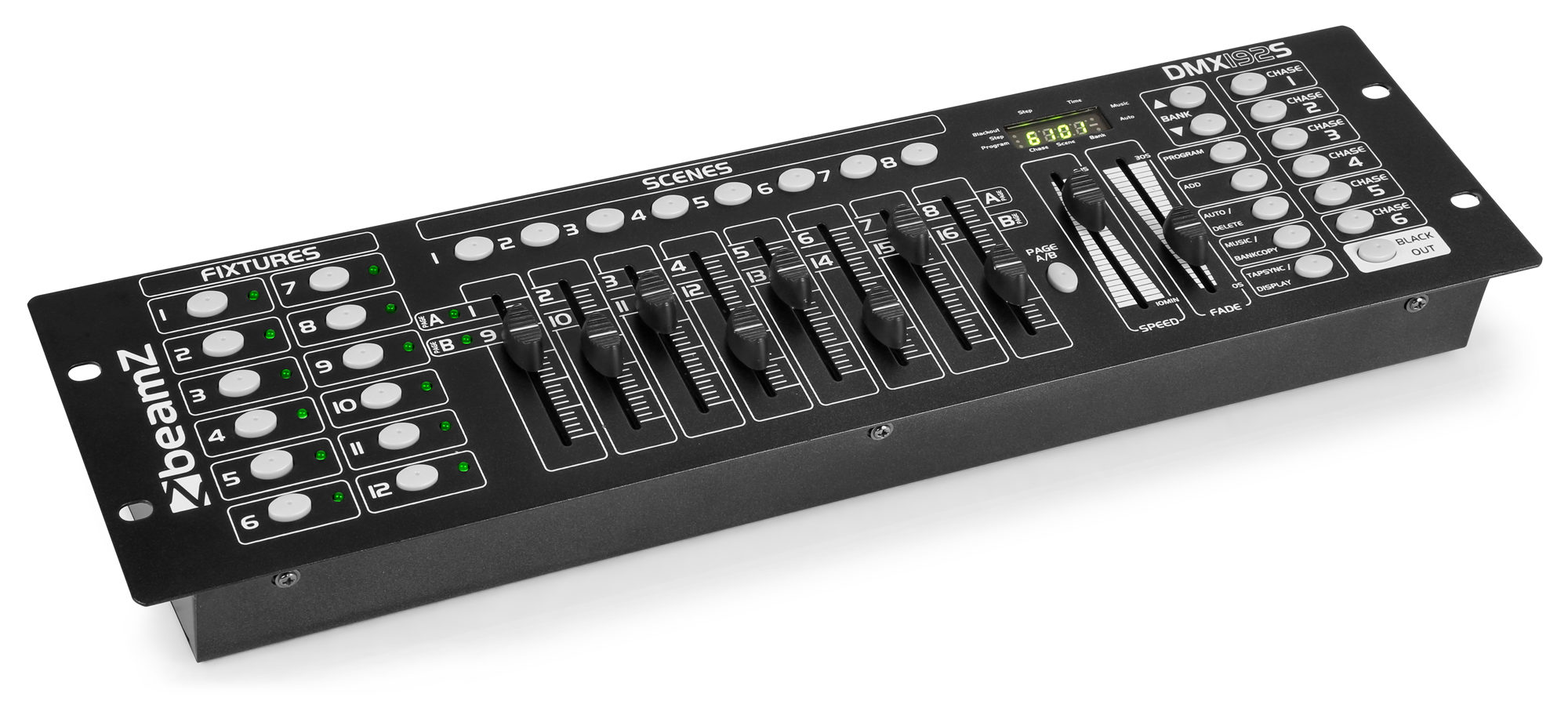

Dedicated DMX control for the sanctuary lighting system.
Manufacturer product details ↗Manufacturer product photography: BeamZ. Installation photographs are shown in the project gallery above.
Audio and presentation

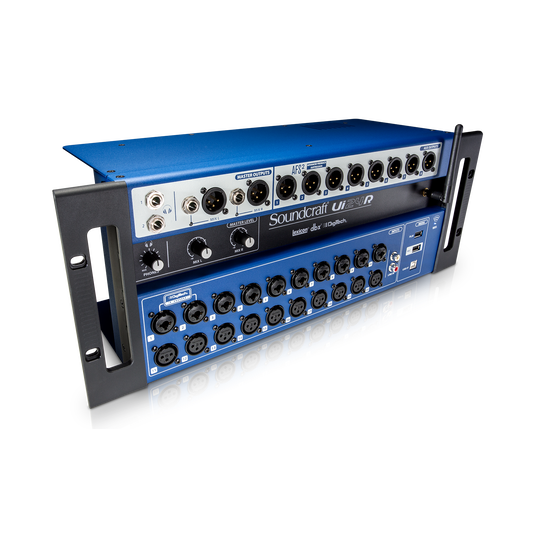

Rack-mounted digital mixing with remote control from compatible connected devices.
Manufacturer product details ↗The rack-mounted Soundcraft Ui24R brings remotely accessible mixing to the church’s audio system. Its browser-based control allows an operator to manage the mix from a compatible connected device, supporting adjustment from a useful listening position within the venue.
The mixer upgrade works with the existing audio system. Integration includes audio routing and level checks, with a user manual supplied to support parish operation.
The presentation scope provides an HDMI input at an agreed location and a hardwired connection through a two-way splitter to the two monitors in the nave.
Audio from the HDMI source is routed into the church sound system. The commissioning scope includes image quality, signal routing, playback volume and lip-sync checks so video and sound can be assessed together.
Delivery and handover
The project scope covers equipment supply, lighting installation and positioning, AV cabling, configuration and commissioning. Cabling is concealed where the existing building structure allows.
Position the lighting, connect the DMX and power infrastructure, integrate the mixer and establish the hardwired presentation connections.
Check lighting control, display image quality, source operation, audio routing and playback synchronisation as part of commissioning.
Provide a basic demonstration for nominated users, supporting equipment documentation and a clean handover of the work area.
The result
The most visible result is the sanctuary’s ability to take on different colours while retaining the cross as its focal point. The supplied photographs show how the same space can move between a neutral white setting and coloured illumination.
Alongside the lighting, digital mixing and the planned hardwired presentation path address the practical work of running services: controlling sound, connecting a laptop and sharing content across the nave.
For churches considering a similar project, St John’s demonstrates the value of treating lighting, audio and presentation as a coordinated upgrade. Each element serves a clear purpose within the existing worship space.
Local project experience
Masters Voice Technology supports churches, venues and community spaces across Taree, the Manning Valley and the wider Mid North Coast. ACCAV’s delivery at St John’s adds a local example of sanctuary lighting and AV integration.
Explore our Mid North Coast services →Related capability
Explore audio, presentation and control for worship spaces. House of worship AV →
See the speech-clarity approach at St Francis of Assisi Church, Paddington. Read the St Francis project →
Keep suitable existing AV systems operating with assessment and maintenance. AV support services →
Related: Electrical services · Church speech-clarity guide · More project case studies
Project questions
Six BeamZ LCB300 RGBW LED linear wash bars, a DMX192S lighting controller and dedicated RGBW strip lighting with a driver and power supply for the holy cross.
Yes. The RGBW lighting and DMX control provide adjustable colour settings. The project photographs show white, red and green lighting in the sanctuary.
A Soundcraft Ui24R rack-mounted digital mixer, with remote control from compatible connected devices, was selected to integrate with the existing church audio system.
The specified HDMI input feeds a two-way splitter connected to the two nave monitors. HDMI audio is integrated with the existing audio system, with playback and lip-sync checks included in commissioning.
